Just Enough Structured Analysis

Today I happened upon a notable source. Ed Yourdon is writing once again about structured analysis. According to Ed,

“This is an update, condensation, and pragmatic revision of my 1989 tome, Modern Structured Analysis, which is still employed by malicious professors to torture innocent students in universities around the world—the decision to update the material, and to rewrite what was probably far too ponderous a tome (672 pages) even in the days when people actually had enough time to read books printed on dead trees—[is based on the fact that] today, we’re too busy to spend much time thinking about anything, and we’re also far too busy to read more than a couple hundred pages of the bare essentials on any topic. What we want is just enough … “

Ed plans on completing his book in 2007. There are a handful of chapters available now including one on Data Flow Diagrams and another on Process Specifications (which shows many different ways to represent what’s going inside a bubble on a data flow diagram). At OOPSLA last year I had the pleasure of hearing stories from Ed including how he’d been recently asked, “Aren’t you dead?” Ed’s very much alive. I’m not sure when I’ll next create any of these models, but I want to know about them from the source.

Pattern drift

When I first reviewed Design Patterns, I recommended it be published as a loose-leaf notebook. I suggested that authors provide regular updates (this was before the Internet was readily available!). I anticipated frequent updates and many more additions. 23 patterns didnâ’t seem like nearly enough.

Fast forward to 2006. Design Patterns has been in print unchanged for 12 years. Although recognized as a landmark book, it needs refreshing. In fairness, the book was so popular that there was little motivation to do so. An update is supposedly in the works.

I give my students the original text, but they struggle to read it and find relevance (C++ and graphics examples are a stretch for most). I always point them to other sources, both online and in print, to fill in the gaps. Many have written their own take on specific patterns. That is a good thing. In 1998, in a C++ Report article, John Vlissides acknowledged that pattern definitions aren’t cast in stone.

It seems you can’t overemphasize that a pattern’s structure diagram (class diagram) is just an example, not a specification. It portrays the implementation we see most often. As such, the Structure diagram will probably have a lot in common with your own implementation, but differences are inevitable and actually desirable. At the very least you will rename the participants as appropriate for your domain. Vary the implementation trade-offs, and your implementation might start looking a lot different from the Structure diagram.

In Refactoring to Patterns, Josh Kerievsky quotes Vlissides and then after illustrating the original Composite pattern:

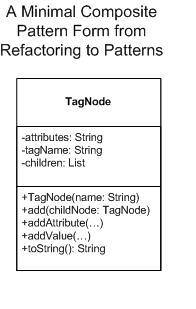

Gives his own take on a single-class implementation:

Hmm. A single concrete class that could support either leaf or composite behaviors. Now that’s a thought—but is it still recognizable as a composite pattern? Sure, but what is it that makes a composite a composite and not just another structuring mechanism? Is it just a fancy name for a “tree structuring mechanism” or is there something more?

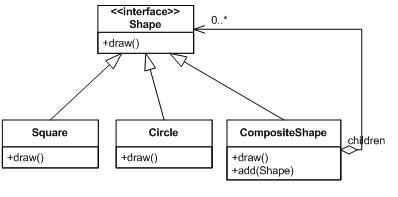

Bob Martin, in Agile Software Development, presents another variation. He illustrates composite with a Shape interface which defines a single method-draw(). That interface is realized by classes that are either primitive shapes or composed of other shape objects.

In 1994 when Design Patterns was published, interfaces weren’t present in popular programming language. The authors relied on abstract class definitions instead. Since I spend my time with C# and Java, today I’d likely recast many GOF patterns using interfaces instead of abstract classes, especially when there isn’t any common meaningful behavior to inherit.

But Bob’s example illustrates another important design choice. He didn’t force-fit composite behavior into a common abstraction shared by both composite and leaf objects. He isn’t alone in making this tradeoff. Many of my students after struggling to define meaningful operations common to both, throw up their hands and grumble that the GOF authors made the wrong tradeoffs when they specified the composite pattern. This sentiment is echoed on a RICE webpage:

In Design Patterns, the abstract component AComponent is shown as having accessor methods for child AComponents. They are not shown here because it is debatable as to whether one wants the Client to fundamentally view the Component as a single component or as a collection of components. Design Patterns models all Components as collections while the above design models them all as single components. The exact nature of those accessor methods is also debatable.

Debating design tradeoffs is healthy. That’s why I give my students GOF undistilled and we discuss tradeoffs as they learn patterns. This helps them gain design confidence as they articulate their values and say what they like and don’t like about the patterns as presented. But sometimes I think they’d prefer a simple canonical pattern form they could just use without much thought. I often point them to the Data & Object Factory website which has a quick pocket guide discussion of each pattern. But the composite pattern sample implementation there defines an abstract Shape class with empty add() and remove() methods. And leaf classes implemented add or remove by writing a console message, “can’t add/draw a shape to an xxx” A toy solution if I ever saw one! Perhaps if I paid $79 to purchase their Design Patterns Framework I’d see a more realistic implementation.

This leads me to wonder: what makes a pattern useful, how much change can or should it undergo, and how much stewardship should there be over pattern drift, pattern evolution and pattern explanations? I don’t expect patterns to be fixed and unchangeable. They should wiggle around a bit. But I like thoughtful discussions and reasonable examples. I wish there was a community that maintained an active PatternPedia repository where authors would be encouraged to keep their patterns up to date and where there were useful teaching examples, thoughtful reviews, and summaries of both new and classic patterns. The Portland Pattern Repository is a springboard for patterns, but it doesn’t seem very active. The Hillside website is useful, but it just points to other sources. I have more in mind a cross between Wikipedia and Amazon with an edge and an active editor/convener whose job is to keep us informed of the latest breaking pattern news. Sure I can search the internet and books for patterns. But my search feels scattered. I never know when I’ll stumble across some arcane shift, a mangling of a pattern’s intent, or a good trend to follow. It’s too hit and miss.

Currently, most patterns are copyrighted by authors and are locked up in relatively static media books or conference proceedings or magazine articlesâ or static online versions of the same. There’s no central source, no common repository for a growing body of pattern wisdom gained from experience. So when pattern interpretations shift, as they invariably do, it is in a quirky ad hoc manner. I don’t mind Kerievsky’s compact interpretation of Composite. I just wish his version was accessible to those who didn’t buy his book, and that there was a place for open debate about the merits of this implementation choice that was readily linked to other Composite pattern interpretations. Is this asking too much? Isolated works make it difficult to change/refine/
invigorate patterns with in a larger community of users/developers/pattern authors. What would it take to create a patterns commons? I’d be interested in hearing your thoughts.

John Vlissides

John Vlissides died November 24th. A wiki page is dedicated to his memory.

One of my favorite books is John’s Pattern Hatching. I love that book. Reading it is like conversing with a wise, witty, insightful friend. As parting advice in Pattern Hatching, John advises pattern writers to,”Write clearly and unpretentiously. Favor a down-to-earth style rather than a stuffy academic one. People understand and appreciate a conversational tone, making them more receptive to the material. Make sure everything you write is something you could hear yourself saying to a friend.”

Good advice. When I asked John to write a forward for our design book I was anxious about whether our writing and writing style would pass muster. They did (whew!). I was stunned by his generous, kind, and encouraging words. John has been a good and wise friend, mentor, and colleague, who has encouraged and inspired many in the software community. We will miss him very much.

OOPSLA, Creativity, and Practice

I’m home for 2 weeks after spending a week at San Diego at OOPSLA and last week teaching object design. It is good to be home as I can now configure my new tablet PC and start using it. It’s bad to be home as it is raining too hard and spoiling my plans for getting my perennial garden in shape for the winter. But truth be told, the rain leaves me hunkered down inside, forcing me to write, to reflect, and start new projects.

OOPSLA this year was full of creative types: George Platts led a number of workshops and experiences; Robert Hass, past poet-laureate of the USA, gave the keynote. This was no surprise with Dick Gabriel as program chair. Dick is a man of many talents. In addition to his heavy-duty computer side—having made Lisp implementations practical being one of Dick’s early accomplishments—he is a published poet, musician, patterns instigator, Sun fellow, and scholar. A highlight for me was getting Dick to autograph his new book of poetry Drive On and then to read it on the plane ride home.

Sunday morning I attended the tutorial, “How has the arts, sports or life stimulated, inspired and informed your work in computer science?” led by George Platts. George is an artist and game master who is a well known creativity/fun instigator at software pattern conferences. As it was a Sunday morning tutorial, I expected George to drive (and me to sit and quietly soak up his words). Silly me. After showing us an incredible film of an amazing panoply of pyrotechnics, mechanical feats, oozing chemical reactions crafted to produce a Rube Goldberg-like perpetual motion machine, we sat down to discuss how art or sports stimulated or inspired our work.

Two thoughts struck me about how arts and sports have stimulated my work. In college I fenced (with a foil—don’t ever call it a sword). Much preparation went into a competition. We repeatedly practiced standard moves (all with Italian names). Only after much practice with attacks and counter-attack moves would we do practice competitions. Being a left hander gave me a distinct advantage as my body was not where it was expected to be. Lefties fencing lefties are on equal footing as we, too, are accustomed to fencing right handers. So even while I was at an advantage (being short makes for a smaller target and being a lefty makes for an unusual target) during the heat of a competition I’d forget much and just go on raw instinct. Only when moves and countermoves become kinetic memory do you get really good. I never got good as I spent too much time getting my programs to work instead of devoting energy to perfecting my fencing technique.

Bringing up this notion of practice led us to discuss what constitutes “practice” or “repetition of scales” for software developers. What do you developers or designers or analysts do over and over and over again until it becomes second nature and makes them good at what they do? Programming? Applying design patterns? Writing use cases? Learning how to ask probing questions? Well maybe. I’m not sure we software types have a clear equivalent of scales. Does repeatedly programming yet another JSP make you a better at it? Building consistency into your design makes your design better. But does it make you a better designer?

A second artful inspiration I’ve had is from Betty Edwards, author of Drawing on the Artist Within. Betty has inspired me as a teacher of design in how I try to break down design ideas and thinking for others. Betty claims that people are crappy artists because they don’t know how to see, and that by learning special ways of seeing, most of us could be able to become passable renderers of what we see. She believes everyone can be taught how to draw likenesses of what they see. I had a really bad pottery teacher in college who asked us to “feel what was in the clay and then create”. I was frustrated and created lumpy awkward pots because I lacked technique and this instructor didn’t teach any technique. As a teacher of software design I don’t like it when my students create lumpy malformed objects. I teach them a number of techniques for seeing good formations of objects—role stereotypes, a smattering of patterns, the notion of domain entities and value objects from Eric Evans’ writing, a sense of control style choices. But sometimes these ways of seeing don’t click in and my students create strange designs. Or worse yet they get frustrated and just want to know what steps to go through to create passable designs; to heck with all this technique. All I can say is that design takes practice and reflection and technique. I don’t know how to teach design as a rote process.

As a result of George’s tutorial, I got to know Henry Barager of Instantiated Software Inc. Besides being a skilled software architect, Henry’s a whiz at cryptic crosswords. Over lunch one day at OOPSLA Henry taught me about cryptic crosswords by working through one with me (Henry did most of the work but he patiently let me solve a few entries after explaining the basic idea). The key to solving a cryptic crossword entry is to figure out how to separate the word or word phrase you are solving for from the encrypting part. Then there are clues in the encrypting instructions part which may lead you to take some letters and jumble them (key words may imply that you create an anagram, wrap one word inside another, truncate a word, etc.) or not. For example: Flower came up. The answer is Rose. Rose is a flower, and “came up” is another meaning for rose. Simple, right? Well try this: Piece of technology in broken device tossed out. Give up? It is evicted (tossed out = evicted, that’s the definition. The rest of the encrypting part is this: A piece of technology is the “t”, broken device is “evice d”, device jumbled or broken).

Explaining the idea behind cryptic crosswords is fairly simple. Solving entries takes a lot of effort and getting your brain in a problem solving frame of mind. Solving them in real time as Henry does requires skill, experience, and intelligence. Teaching others how to solve them takes another kind of skill. The same goes for object design. Learning object concepts is trivial. Crafting simplistic solutions is, too. Putting together elegant designs that work for complex problems is much harder. It requires practices, reflection, as well as learning techniques from masters who shouldn’t try to solve all the hard problems for you. I wish I’d had someone who would’ve demonstrated and helped me practice good technique when I was learning to shape pottery or to draw. I was fortunate to rub shoulders with some very bright Smalltalk folks when I was learning how to think in objects. Thanks to all the folks at Tektronix and Instantiations for teaching me how to see and build object designs.

Musings of an OOPSLA elder

I don’t think of myself as an “elder”. But that is what Linda Rising, who led the 20th OOPSLA retrospective, labeled those who were at the first OOPSLA. I am one of five who received a perfect attendance ribbon (Allen Wirfs-Brock, Brian Foote, Ralph Johnson and Ed Gehringer are the others) for having attended all OOPSLAs. At the very first OOPSLA I felt like an outsider. I wondered how I could get involved with this conference. Excitement was in the air. Objects were the next big idea. Just exactly what could I do that would have an impact? My paper on Color Smalltalk was rejected (the reviewers’ commented that it talked too much about hardware details) so I presented it as a poster. It was good that they rejected it. Our work was premature. Three years later, when Tektronix Color Smalltalk was finally a product, I wrote a paper about the design principles and class libraries in Color Smalltalk that was accepted. This success made me believe in my writing abilityand led to my paper with Brian Wilkerson on Responsibility-Driven Design in 1990, and launched my enduring interest in design.

Thursday I had another elder moment. I was on a panel with Ed Yourdon, Larry Constantine, Grady Booch, Kent Beck, and Brian Henderson-Sellers that looked back at echoes of the past and structured design and into the future. Larry Constantine provoked us to bring theory, technique and transparent tools into all we do. Kent brought the house down by quoting from Structured Design. He noted that while Ed and Larry got a lot right, they missed out on the fact that systems need to change. Refactoring wasn’t part of Ed and Larry’s vocabulary. Ed, who has been an expert witness on software cases for the past few years, noted that there often isn’t even a shred of a plan or design or any documentation for software systems. Grady mentioned that increasing abstractions have been a big factor and challenged us to move to even further levels of abstraction. More down to earth, I spoke about how objects enabled me to think clearly, and that the power of abstraction, encapsulation, and thinking in terms of small neighborhoods of collaborating, responsible objects as a big step forward. What’s next? To me, it seems that even more effective methods and practices, powerful development and testing environments, expressive languages, patterns, and thinking tools are in our future. Innovation in our industry is a constant. Yet every once in a while it is good to reflect on what we got right and remember influences from the past. But I’m forward looking too. After every OOPSLA I come home charged with new ideas and the urge to do more, collaborate, and continue learning. What a blast!

Why Objects?

As I’ve been working on a position statement for an OOPSLA panel reflecting on the roots of modern software development practices while looking to the future, I’ve been thinking hard about why I got hooked on object technology. Compared with structured programming and design, objects seemed significantly better at handling complexity. Object programming languages were an earth shattering improvement over the procedural and assembly languages I used when I first encountered structured design techniques. Instead of simply following conventions, object programming language constructs forced me to bundle together meaningful operation and data. Object-oriented methodologies generally incorporate the principles of structured design but OOD seems much more than an incremental improvement over SD. Instead of focusing on a thread of control and managing its complexity via procedural decomposition and structured control constructs, object design enables me to break a composition into thousands of semi-autonomous entities with structured roles and responsibilities. Objects offer me a completely different way to think about computation. This way of thinking empowers me to deal with a level complexity that I could never have dealt with only using structured design techniques. Object technology encourages me to form abstractions—objects—and to design how small neighborhoods of them interact.

Responsibility-driven design offers thinking tools that enable developers to conceive of an implementation in terms of interacting roles and their responsibilities. It provides a vocabulary for describing designs that helps developers communicate complex ideas and make tradeoffs more effectively. Agile practices, by emphasizing working code that satisfies customers, seek to reduce accidental complexity by admonishing you to design simply and grow complexity only when needed. Eric Evans, in Doman-Driven Design: Tackling Complexity in the Heart of Software, offers tactics for identifying, preserving, and sharing a common domain model. Refactoring tools have taken tediousness out of making changes and modern application development environments have made it possible for development teams to “hum” by testing and building incrementally. These all represent progress.

But at the end of the day, they cannot reduce the complexity inherent using diverse tools, platforms, and technologies that make up a typical sprawling IT system. While OOD/OOP did give us an order of magnitude improvement over previous techniques and tools, we still don’t have the order-of-magnitude better approach we need to sort today’s complex environments and minimize the gaps and seams that are inherent when diverse technology comes together in a complex system. In the meantime, thank goodness for the framework builders who give us various ways of linking objects with relational databases and for little languages and tools that take the tedium out of repetitive (error prone) tasks of gluing things together. We live in a complex world where objects will continue to make a lasting, significant contribution. What will be the next breakthrough in software development that will subsume the principles of OOD (and transitively SD) and provide the next order of magnitude improvement? I’m not sure. While I don’t think there are any silver bullets out there, I look forward to discovering and encountering even more effective practices, technologies, and techniques that allow us to address inherent complexity head on.

Rock, Paper, Scissors–oh Sh#$%!

What’s your reaction to errors in a technical book or article? If you are like me, you discount the writer’s words if there are too many errors. If I find the topic interesting, however, I ignore infrequent errors and plunge ahead. But sometimes errors impede understanding. In that case, it’s always good to ask what the author meant to say. From time to time I get emails from readers tripping over errors in my own books. I try to thoughtfully answer their questions. Let me share a recent query:

Hi Rebecca,

I’m a little confused with your paper, rock, scissors example and the errata for your Object Design book. I figured out there seemed to be a problem when I got to figure 1-9. I went looking for errata. But the errata seem to have a problem too! For page 21, it mentions figure 1-9, but figure 1-8 is on pg 21! I’m not sure whether the page number is wrong, or the figure…. I’m assuming the figure. But beyond all that, I don’t understand the purpose for three added methods beatsRock(), beatsPaper(), and beatsScissors(). Since a rock only calls beatsRock() and a paper only calls beatsPaper(), then why do we need three methods in this interface? Why not just have a “beatsMe()” method that is defined for the particular class being defined? Any clarification would be appreciated.

This reader had every reason to be puzzled. Not only did the example in my design book have a coding error, but the accompanying sequence diagrams did too. Even more frustrating, the errata referenced the wrong figure. After acknowledging the reader’s concerns, I went on to explain at some length that the purpose of this rather contrived example was to illustrate how double dispatching works. While indeed, the answer could’ve been implemented in a single method, that wasn’t the point. Instead it was to illustrate that double dispatching eliminated the need for case or switch statements. Double dispatching (whether you think it is a good idea or not) is a tricky enough to grasp even without the typos!

I didn’t intend to purposefully introduce errors. They crept in because writing and editing, like coding, require concentration and attention to detail. Because I’m human, I’m not perfect at tasks like these. Most people aren’t. With material that you are overly familiar with, you tend to read into it what you meant to say, skipping over small mistakes without even seeing them. One way I’ve found to force my brain to look at text or code with a fresh eye is to read it from the bottom up, one sentence or expression at a time. This shifts my perspective, allowing me to see errors more readily.

When others revise your work, there are even more opportunities for introducing error. Overzealous copyeditors introduce errors because they don’t believe you would want to say something that way (you couldn’t have meant OffF(i), so I’ll just change this to Off(i). Never mind that OffF(i)—for Off-Floor—was exactly what you intended). I understand why some insist on typesetting their own books and compiling every line of code. An author has to be really on her toes to catch those “thoughtfully” induced errors. These can be especially difficult to detect because our brains skip over infrequent mistakes, especially when we “know” what is right. Fortunately, the more errors there are, the easier they are to spot. But first the fact that they exist has to be brought to your attention.

Ever wonder why pair programming is advocated by Extreme Programmers? It’s not because geeky software types as a general rule like to socialize, but because one can spot another’s mental lapses. Ever wonder why test-driven development is catching on? Tests force you to think through the functionality you want to implement with a fresh viewpoint, catching errors in your thinking before you code.

The next time you spot an error in a book or an article, consider letting the author know about it. I know I would appreciate hearing from you. Your comments make me a better writer (and you a more actively engaged reader).

Problem Frames and an Eager Designer

The past few weeks I have been participating in a book study group on Michael Jackson’s Problem Frames: Analyzing and structuring software development problems. Problem frames are a concept that Michael Jackson (the UK software analyst, not the courtroom celebrity) invented to characterize classes of problems that computer programs solve. According to Jackson,

“A problem frame defines the shape of a problem by capturing the characteristics and interconnections of the parts of the world it is concerned with, and the concerns and difficulties that are likely to arise. So problem frames help you to focus on the problem, instead of drifting into inventing solutions.”

Problem frames are lenses you apply to look more deeply at a problem. If you know what type of problem you are looking at, you can ask intelligent questions and make tighter specifications for how your software should behave and how it should interact with things in the world. Being a designer, I’m always looking to solve problems. Yet it is true that mixing up problems with solutions can cause interesting communication problems and disconnects.

Consider this statement from a Canadian farmer about the trouble with daylight saving time: “Chickens do not adapt to the changed clock until several weeks have gone by so the first week of April and the last week of October are very frustrating for us.” OK, I’ve gotta ask, do chickens really understand changed clocks? Of course not. The problem isn’t that chickens can’t adjust to the changed clock. The problem is that farmers’ sleeping and waking habits shift as a consequence of daylight saving time. The chickens still are disrupted, but only because the farmers have adjusted their behavior. Let’s not mix up cause with effect.

Jackson’s book is full of examples that exercise the muscles in your brain that help you untangle cause from effect and explore how much of the real world you have to understand before you can specify how your software should behave. It has been novel for me to take several steps back in order to deeply understand the nature of a problem. Be aware that I have a healthy skepticism for “big upfront analysis” just like I do for “big upfront design”. I don’t think the right approach for me is to spend lots of time deeply pondering problems before I start thinking about solutions. But l hope to apply Jackson’s ideas and deep insights on problems into practical advice and recommendations for those who aren’t keen on formalisms. Stay tuned.
